LUKS Disk Encryption With cryptsetup (Linux Guide)

LUKS disk encryption with cryptsetup is four commands. Format the device, open it, put a filesystem on it, mount it:

bash

sudo cryptsetup luksFormat /dev/sdX
sudo cryptsetup open /dev/sdX mydisk
sudo mkfs.ext4 /dev/mapper/mydisk
sudo mount /dev/mapper/mydisk /mnt/secure

That is the whole job for an empty data disk. The hard parts are not the commands; they are the things the commands do not warn you about: luksFormat destroys everything on the target, the LUKS header is a single point of failure you have to back up, and getting /dev/sdX wrong means encrypting the wrong disk. This is field-tested on Debian and Ubuntu; the binary is the same everywhere, so it works identically on Fedora, Arch, and RHEL once cryptsetup is installed.

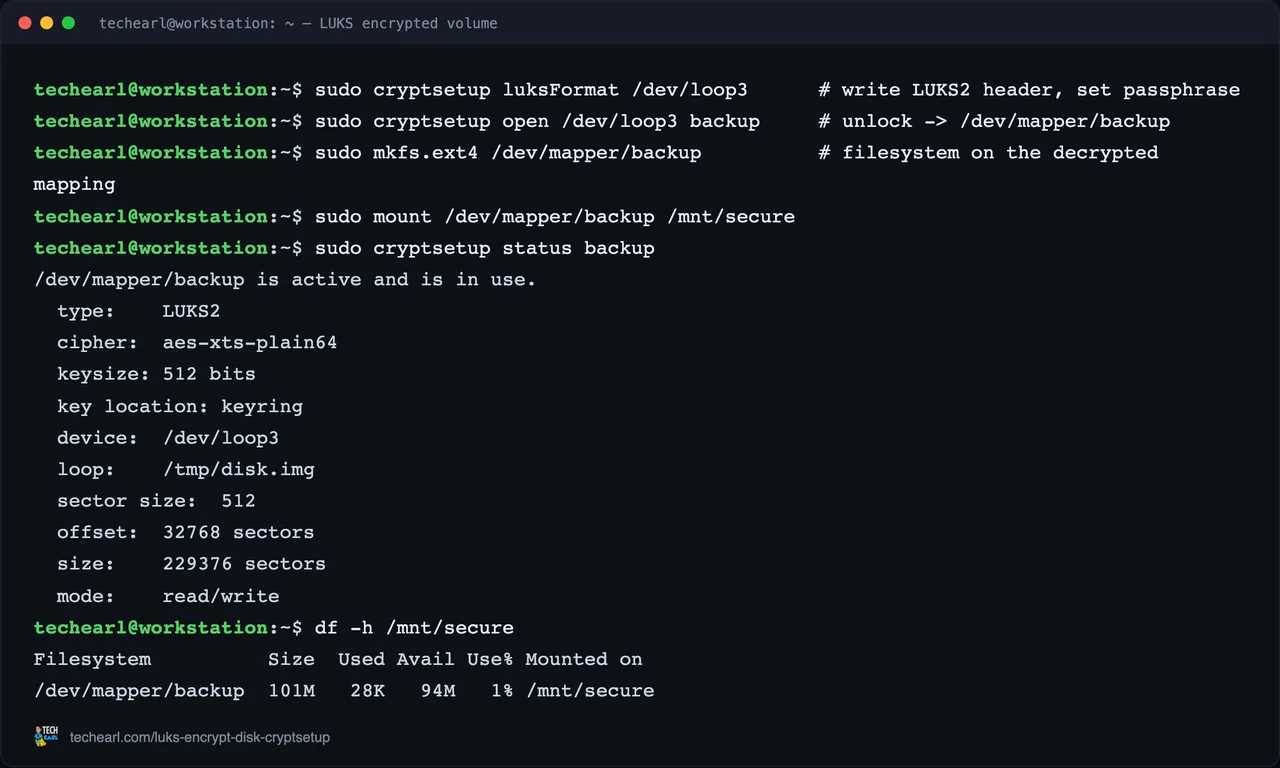

A terminal running cryptsetup luksFormat, open, mkfs.ext4, and mount, then cryptsetup status showing an active LUKS2 mapping with aes-xts-plain64 cipher and a 512-bit key, and df confirming the encrypted volume is mounted — The full flow on a loopback-backed test disk: cryptsetup status confirms a live LUKS2 mapping (aes-xts-plain64, 512-bit key) and df shows it mounted. Real cryptsetup output.

Pick the right device first (this is where people lose data)

luksFormat is destructive. It writes a new LUKS header and from that point the old contents are gone. So before anything else, confirm which block device you mean:

bash

lsblk -o NAME,SIZE,TYPE,MOUNTPOINT,MODEL

code

NAME   SIZE TYPE MOUNTPOINT MODEL
sda    238G disk            Samsung SSD 860
├─sda1   1G part /boot
└─sda2 237G part /
sdb    932G disk            WDC WD10EZEX

Here sdb is the unmounted 1 TB drive I want to encrypt; sda is the running system. Encrypt the partition (/dev/sdb1) if the disk has a partition table, or the whole device (/dev/sdb) if you want one big encrypted blob with no partitioning. Both are valid. I encrypt the whole device for single-purpose data disks and a partition when the disk shares duties.

Throughout the rest of this guide I use /dev/sdb as the target. Substitute your real device, and double-check it against lsblk every single time.

Format the device with luksFormat

bash

sudo cryptsetup luksFormat /dev/sdb

cryptsetup makes you confirm in capitals and then asks for the passphrase twice:

code

WARNING!
========
This will overwrite data on /dev/sdb irrevocably.

Are you sure? (Type 'yes' in capital letters): YES
Enter passphrase for /dev/sdb:
Verify passphrase:

You do not need to pass a cipher or key size. On current cryptsetup the default format is LUKS2 (since 2.1.0) with aes-xts-plain64, a 512-bit key (256-bit AES because XTS splits the key in two), and Argon2id as the password-hashing function (the default KDF since cryptsetup 2.4.0; earlier LUKS2 used Argon2i). Those defaults are sound; override them only if you have a specific reason, for example a kernel that lacks AES-NI where you might prefer a cipher like xchacha20,aes-adiantum-plain64 on low-power hardware.

To be explicit about the format, name it:

bash

sudo cryptsetup luksFormat --type luks2 /dev/sdb

LUKS2 has been the default since cryptsetup 2.1.0 (2019). The main reasons to force --type luks1 are GRUB booting an encrypted /boot on older setups, or an old initramfs that cannot open LUKS2. For a plain data disk, take the default.

Open it, format the mapped device, mount it

Opening attaches the decrypted device under /dev/mapper/:

bash

sudo cryptsetup open /dev/sdb secure-data

secure-data is a name you choose; the unlocked device appears at /dev/mapper/secure-data. (cryptsetup luksOpen is the old spelling and still works; open is the current form.) Everything you write through that mapper node is encrypted on the way to the disk and decrypted on the way back, transparently.

Now treat /dev/mapper/secure-data like any block device. Put a filesystem on it and mount it:

bash

sudo mkfs.ext4 /dev/mapper/secure-data
sudo mkdir -p /mnt/secure
sudo mount /dev/mapper/secure-data /mnt/secure

When you are done, unmount and close to lock it again:

bash

sudo umount /mnt/secure
sudo cryptsetup close secure-data

Once closed, the data on /dev/sdb is unreadable ciphertext until someone opens it with a valid passphrase. There is no plaintext copy of the key sitting anywhere on disk; the key is unwrapped from a keyslot in the header using your passphrase and held in kernel memory only while the device is open.

Back up the LUKS header (the step everyone skips)

The LUKS header sits at the start of the device. It holds the keyslots, which hold the encrypted master key. If the header is corrupted or overwritten, the data is gone permanently, even with the correct passphrase, because the master key it protected is unrecoverable. A stray dd, a partition tool that rewrites the first few megabytes, a flaky USB enclosure: any of these can take out the header.

So back it up the moment the device exists, and store the backup somewhere other than the encrypted disk:

bash

sudo cryptsetup luksHeaderBackup /dev/sdb \
  --header-backup-file /root/sdb-luks-header.img

To restore after a header disaster:

bash

sudo cryptsetup luksHeaderRestore /dev/sdb \
  --header-backup-file /root/sdb-luks-header.img

One caveat worth stating plainly: the header backup contains your keyslots. Anyone who has both the header backup and a passphrase that unlocks one of its slots can decrypt the disk. Treat the backup file as sensitive as the disk itself. If you later change the passphrase, an old header backup still opens with the old passphrase, so rotate or destroy stale backups.

Manage keyslots: add, change, and remove passphrases

A LUKS device has multiple keyslots (8 in LUKS1, up to 32 in LUKS2). Each slot holds the same master key wrapped under a different passphrase. That is how you give two people independent passphrases to the same disk, or rotate a passphrase without re-encrypting.

Add a second passphrase:

bash

sudo cryptsetup luksAddKey /dev/sdb

It prompts for any existing passphrase first (to prove you are allowed), then the new one. Remove a passphrase you no longer want:

bash

sudo cryptsetup luksRemoveKey /dev/sdb

Change one in place (remove old, add new, atomically):

bash

sudo cryptsetup luksChangeKey /dev/sdb

Inspect what is in the header without unlocking anything:

bash

sudo cryptsetup luksDump /dev/sdb

luksDump shows the LUKS version, cipher, KDF, and which keyslots are populated. It does not reveal any key material, so it is safe to run and paste when asking for help.

Mount it automatically at boot (crypttab and fstab)

Running open then mount by hand every reboot gets old fast. To unlock and mount a data disk automatically at boot, wire it through /etc/crypttab (unlock) and /etc/fstab (mount). Reference the device by UUID, not /dev/sdb: kernel device names are not stable across reboots and a renamed disk in crypttab is how you end up unlocking the wrong device.

Get the UUID of the encrypted block device (the raw /dev/sdb, not the mapper node):

bash

sudo blkid /dev/sdb

Add the unlock line to /etc/crypttab. The fields are: mapper name, source device, key source, options.

code

secure-data  UUID=<uuid-of-/dev/sdb>  none  luks

none for the key source means cryptsetup prompts for the passphrase at boot. That is fine for a desktop or a machine with a console. To unlock without a prompt, point the third field at a keyfile instead (/root/secure-data.key), add that keyfile to a keyslot with cryptsetup luksAddKey /dev/sdb /root/secure-data.key, and lock it down with chmod 0400 so only root can read it. A keyfile on the same machine only protects against a stolen drive, not a stolen running box, the same caveat as below.

Then add the mapper device to /etc/fstab so the unlocked volume mounts:

code

/dev/mapper/secure-data  /mnt/secure  ext4  defaults  0  2

Test the wiring before you trust a reboot to it:

bash

sudo systemctl daemon-reload
sudo cryptsetup luksClose secure-data 2>/dev/null
sudo systemctl start "systemd-cryptsetup@secure\x2ddata.service"
sudo mount -a

If mount -a mounts /mnt/secure cleanly, the next boot will too. Get this wrong on a root disk and the machine can fail to boot into a usable state, so always test on a data disk first.

When LUKS is the wrong tool

LUKS encrypts a block device at rest. It does not help with:

Per-file encryption inside a shared filesystem. If different users need different keys on the same mounted volume, you want fscrypt (ext4/f2fs native encryption) or gocryptfs, not one LUKS volume everyone shares.
Data in transit. LUKS protects the disk, not the wire. Use TLS or SSH for that.
An always-on server with no one to type the passphrase. A LUKS volume that auto-unlocks from a keyfile on the same machine protects against a stolen drive but not a stolen running machine. For headless boxes you usually want to unlock remotely at boot. I covered that in unlocking LUKS remotely over SSH with Dropbear.
Protection while the disk is mounted. Once opened, the filesystem is plaintext to anything running as root on that machine. Encryption-at-rest is exactly that: at rest.

LUKS1 vs LUKS2 at a glance

Aspect	LUKS1	LUKS2
Default since	cryptsetup before 2.1.0	cryptsetup 2.1.0+ (2019)
Default KDF	PBKDF2	Argon2id (memory-hard, GPU-resistant)
Keyslots	8	up to 32
Header redundancy	single header	primary + secondary header copy
Metadata	fixed binary	JSON, extensible (tokens, integrity)
GRUB `/boot` support	yes	GRUB 2.06+ only; older setups need LUKS1

For a fresh data disk, take the LUKS2 default. The only common reason to choose LUKS1 in 2026 is booting an encrypted root or /boot through an old GRUB.

Yes. luksFormat writes a new LUKS header and a fresh master key, which makes any prior contents unrecoverable. That is why it forces you to type YES in capitals. Confirm the target device with lsblk before you run it, and never point it at a disk you have not backed up.

The data is unrecoverable. There is no backdoor and no recovery key unless you created a second passphrase or a keyfile in another keyslot ahead of time. This is the point of the design. The fix is preventative: add a backup passphrase with cryptsetup luksAddKey and back up the header with luksHeaderBackup while you still have access.

LUKS2 for almost everything. It uses the memory-hard Argon2id key derivation function, keeps a redundant header copy, and is the default in current cryptsetup. Reach for LUKS1 only when an old GRUB has to unlock an encrypted /boot, or an old initramfs cannot open a LUKS2 header. For a data disk, take the default.

Yes. LUKS stores the master key wrapped in multiple keyslots, 8 in LUKS1 and up to 32 in LUKS2. Each slot holds the same key under a different passphrase or keyfile. Add one with cryptsetup luksAddKey, remove one with luksRemoveKey. Removing a passphrase does not re-encrypt the disk; it just clears that slot.

Add an unlock line to /etc/crypttab referencing the encrypted device by UUID (from blkid), and a mount line to /etc/fstab referencing the /dev/mapper/ node. Use none as the key source to be prompted for the passphrase at boot, or point at a chmod 0400 keyfile (added with luksAddKey) to skip the prompt. A local keyfile only guards against a stolen drive, not a stolen running machine. Test with mount -a before trusting a reboot.

On disk, yes, always. But once you open the device and mount it, the filesystem behind /dev/mapper/ is readable plaintext to anything with sufficient privilege on the running machine. LUKS protects data at rest, for example a stolen or decommissioned drive. It does not protect a running, unlocked system, so a hardened login posture still matters: see disabling direct root login.

Yes, with in-place reencryption rather than luksFormat (which is destructive). cryptsetup reencrypt --encrypt --type luks2 --reduce-device-size 32M /dev/sdb shrinks the data by 32 MiB to make room for the new header at the front, then encrypts every existing block in place. Unmount the filesystem first, and back up before you start: an interrupted reencrypt on an unbacked-up disk can leave it unreadable. For a blank disk this is unnecessary, just use the four-command path above.

On any modern CPU with the AES-NI instruction set, the overhead is small, usually single-digit percent for typical workloads, because the AES-XTS cipher runs in hardware. Check your CPU has it with grep -m1 aes /proc/cpuinfo. Without AES-NI (old or low-power hardware) software AES is the bottleneck, and a cipher like xchacha20,aes-adiantum-plain64 is often faster there. Benchmark your machine with cryptsetup benchmark before committing.
